Writing workflows

A workflow is an ordered list of blocks. Each block does one thing (fire a request, check a value, branch, loop) and later blocks read the results of earlier ones. The run passes only if every block passes.

Workflows are project-scoped: one workflow can call operations across several APIs (create through your admin API, then verify through another). The environment isn't baked into the definition; it's bound per API at run time. See Multiple APIs & environments.

You build workflows in the app (drag blocks, fill the forms); the definition is saved as a plain JSON file, so it's committed and reviewable like everything else.

Where it lives

Workflows sit in a reserved workflow directory under apis/, not tied to any one API:

apis/
  workflow/                          # reserved: project-scoped workflows
    pet-lifecycle.json               # the workflow definition
    scripts/
      pet-lifecycle/                 # scripts for that workflow (one folder per workflow)
        assert-missing.ts
  petstore-api/                          # your APIs
  catalog/

workflow is a reserved API slug: you can't create an API named workflow.

Anatomy

{
  "version": 1,
  "onFailure": "halt",
  "validateContracts": false,
  "inputs": {
    "petName": { "type": "string", "required": true, "default": "Rufus" }
  },
  "blocks": [ ... ]
}

Inputs

Declare the values a run needs. Each is string, number, or boolean, optionally required with a default. At run time the app prompts for them (the Inputs panel).

"inputs": {
  "petName": { "type": "string", "required": true, "default": "Rufus" },
  "userId":  { "type": "number", "required": false, "default": 1 }
}

Reference an input anywhere a value is interpolated with {{name}}; see Referencing data.

Blocks

Every block has a unique id and a type. The id is how later blocks address its result.

Any block also accepts an optional description, free text explaining what the block is for. It's the file format's only comment channel (JSON has no comments), and the app shows it next to the block:

{
  "id": "create-pet",
  "type": "request",
  "description": "Create the pet the rest of the run operates on.",
  "request": { "api": "petstore-api", "resource": "Pet", "operation": "create" }
}

request

Every request names the api it targets, then either a schema operation (resource + operation) or a saved request instance (resource + instance). overrides patch params and body for this run, and interpolate {{...}}.

{
  "id": "create-pet",
  "type": "request",
  "request": {
    "api": "petstore-api",
    "resource": "Pet",
    "operation": "create",
    "overrides": {
      "body": { "name": "{{petName}}", "status": "available" }
    }
  }
}

The response lands at create-pet.response: .status, .body, .headers. api is the API's slug; the set of api values across all request blocks is the set of APIs the workflow touches.

assert

List assertions; the block fails if any one fails. Each is a source path, an operator, and (for most operators) a value. value may itself be a {{token}}.

{
  "id": "created",
  "type": "assert",
  "assertions": [
    { "source": "create-pet.response.status", "operator": "equals", "value": 201 },
    { "source": "create-pet.response.body.id", "operator": "exists" },
    { "source": "create-pet.response.body.name", "operator": "equals", "value": "{{petName}}" }
  ]
}

Operators:

For a check the operators can't express, use an assert script instead of assertions; see Scripts.

transform

Give earlier data a short name for later blocks. Each entry is outputName: sourcePath.

{
  "id": "extract",
  "type": "transform",
  "transforms": { "petId": "create-pet.response.body.id" }
}

Now {{extract.petId}} resolves to that id anywhere downstream.

condition

An if check picks the branch: then runs when it passes, else (optional) when it doesn't. Blocks in the branch not taken are marked skipped.

{
  "id": "check-persisted",
  "type": "condition",
  "if": { "source": "get-pet.response.status", "operator": "equals", "value": 200 },
  "then": [
    { "id": "assert-name", "type": "assert",
      "assertions": [{ "source": "get-pet.response.body.name", "operator": "equals", "value": "{{petName}}" }] }
  ],
  "else": [
    { "id": "assert-gone", "type": "assert",
      "assertions": [{ "source": "get-pet.response.status", "operator": "equals", "value": 404 }] }
  ]
}

loop

Three modes:

• times: repeat count times. The iterator (iteratorVar) is the index, 0 to count-1.
• forEach: walk an array at source. The iterator is each element.
• until: repeat until a check passes (polling). Runs the body, then tests until (an assertion) or a script; stops when it holds. delayMs waits between iterations, and maxIterations caps them. If the check never passes within maxIterations, the loop fails. The iterator is the 0-based attempt index.

execution is sequential (default) or parallel (times/forEach only). Inside the loop, {{iteratorVar}} also expands in nested block ids so each iteration's blocks stay uniquely named.

{
  "id": "check-each-pet",
  "type": "loop",
  "mode": "forEach",
  "source": "list-pets.response.body",
  "iteratorVar": "pet",
  "execution": "parallel",
  "blocks": [
    { "id": "pet-available", "type": "assert",
      "assertions": [{ "source": "pet.status", "operator": "equals", "value": "available" }] }
  ]
}

Polling with until: re-fetch until the pet is processed, up to 10 tries, 1s apart:

{
  "id": "wait-processed",
  "type": "loop",
  "mode": "until",
  "maxIterations": 10,
  "delayMs": 1000,
  "until": { "source": "poll.response.body.status", "operator": "equals", "value": "processed" },
  "blocks": [
    { "id": "poll", "type": "request",
      "request": { "api": "petstore-api", "resource": "Pet", "operation": "get",
        "overrides": { "params": { "path": { "pet-id": "{{extract.petId}}" } } } } }
  ]
}

group

Bundles nested blocks under one label so a long workflow stays readable. Collapse it in the app, give it a description, and the blocks inside run exactly as they would at the top level. It adds no behaviour of its own: no branching, no repetition, no scope of its own.

{
  "id": "setup",
  "type": "group",
  "description": "Create the fixtures the assertions below rely on.",
  "blocks": [
    { "id": "create-pet", "type": "request",
      "request": { "api": "petstore-api", "resource": "Pet", "operation": "create" } },
    { "id": "created", "type": "assert",
      "assertions": [{ "source": "create-pet.response.status", "operator": "equals", "value": 201 }] }
  ]
}

Block ids stay global: create-pet.response is reachable from outside the group, exactly as if the group weren't there.

script

A free-form TypeScript block for the rare step no other block covers, most commonly a pause between requests:

{ "id": "wait", "type": "script", "script": { "name": "wait-2s", "exportName": "run" } }

// apis/workflow/scripts/pet-lifecycle/wait-2s.ts
import type { ScriptContext } from '@apicrafthq/script-sdk';

export const run = async (ctx: ScriptContext) => {
  await ctx.sleep(2000);
};

script blocks exist for flexibility. If a native block can do the job, use it instead.

Referencing data

Two ways to reach an earlier value, both using the same dot-path:

• source fields (in assert, condition.if, transform, loop.source) take a raw path: create-pet.response.body.id, list-pets.response.body.0.name.
• {{token}} interpolation works inside any string value: overrides, assertion values, nested block ids.

A path's first segment is either a block id (its result) or an in-scope name: a workflow input, a loop iteratorVar, or a transform output. The rest walks objects by key and arrays by numeric index.

create-pet.response.body.id     # a block result
{{petName}}                     # an input
pet.status                      # a loop iterator element
{{extract.petId}}               # a transform output

Inputs, block results, and transform outputs are global to the run: they cross API boundaries freely, so a value from an admin-API request feeds a later catalog-API request. Only the environment layer (baseUrl, secrets, env values) resolves per the block's own API; see below.

Scripts

When a block needs real logic, it runs a TypeScript function you write. assert, condition, transform, and script blocks can all point at one via "script": { "name": ..., "exportName": ... }. Files live in apis/workflow/scripts/<workflow-name>/.

The function receives a context typed per block kind, all from @apicrafthq/script-sdk:

Each block kind expects a specific shape:

• assert (AssertContext): throw to fail, return normally to pass.
• condition (ConditionContext): return a boolean to pick then/else.
• transform (TransformContext): return an object; its keys become the block's outputs.
• script (ScriptContext): side effects only; return value is ignored.

Assertions in scripts

API Craft ships no assertion library: an assert script fails by throwing, and you choose how:

// apis/workflow/scripts/pet-lifecycle/assert-missing.ts
import type { AssertContext } from '@apicrafthq/script-sdk';

// 1. A plain throw
export const run = (ctx: AssertContext) => {
  if (ctx.blockResult('get-missing-pet').response?.status !== 404) {
    throw new Error('expected 404');
  }
};

// 2. Node's built-in assert
import { strict as assert } from 'node:assert';
import type { AssertContext } from '@apicrafthq/script-sdk';

export const run = (ctx: AssertContext) => {
  assert.equal(ctx.blockResult('get-missing-pet').response?.status, 404);
};

// 3. Your own library: add it as a dev dependency (e.g. chai)
import { expect } from 'chai';
import type { AssertContext } from '@apicrafthq/script-sdk';

export const run = (ctx: AssertContext) => {
  expect(ctx.blockResult('get-missing-pet').response?.status).to.equal(404);
};

Install a library the same way as the SDK, as a dev-only dependency your editor can resolve. See Installing the types.

When you create a script, API Craft generates a per-workflow tsconfig.json and a blocks.d.ts so ctx.blockResult('...') autocompletes your real block ids. Both are gitignored editor tooling.

Multiple APIs & environments

Because a workflow can span APIs, there's no single "the environment" for a run. Instead the run supplies an env binding per API: every API the workflow touches gets its own environment:

petstore-api → prod
catalog  → staging

This is deliberate: env names needn't match across APIs (petstore-api may have prod while catalog has production), so a single global env would be a fragile guess. Each block resolves its {{variables}} against the env bound to that block's API.

Before a run starts, API Craft validates the binding: an API with no env fails fast rather than mid-run.

WORKFLOW_MISSING_ENV_BINDING: no env provided for api "catalog"

Running

In the app

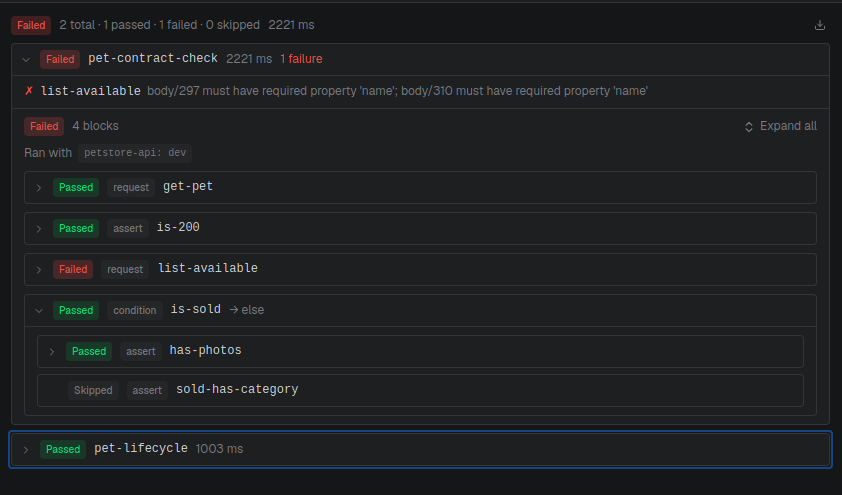

The run panel shows one environment selector per API the workflow touches, all required before Run enables. Fill any Inputs, then run. Each block reports passed, failed, or skipped; open a block to see its response and assertion details. The chosen binding is remembered for your session.

From the CLI

craftr workflow run runs one or more workflows and aggregates the results, the same engine as the app, made for CI. Bind an environment per API with --env <api>=<env> (-e), once per API the run touches:

# One workflow
craftr workflow run pet-lifecycle --env petstore-api=prod

# A multi-API workflow: one --env per API it touches
craftr workflow run publish-and-verify -e petstore-api=prod -e catalog=staging

Pass several names to run a batch, or --all for every workflow in the project. The --env binding must cover the union of APIs across the whole batch:

craftr workflow run pet-lifecycle order-flow -e petstore-api=prod -e catalog=staging
craftr workflow run --all -e petstore-api=prod -e catalog=staging

By default the batch runs 4 at a time; set --concurrency 1 to run sequentially. --input feeds workflow inputs. Prefix with <workflow>: to target one, or leave it off to apply to every workflow in the batch:

craftr workflow run pet-lifecycle order-flow \
  -e petstore-api=prod \
  --input petName=Rufus \          # applies to both workflows
  --input order-flow:qty=3 \       # only order-flow
  --concurrency 2 \
  --on-failure halt

stdout gets a JSON summary report: the batch status, counts, the env binding, and one entry per workflow with its failures, small enough to pipe and assert on. A human-readable summary goes to stderr.

craftr workflow run --all -e petstore-api=prod -e catalog=staging | jq '.status'

The per-block detail (every block, every response) is not on stdout: pass --full-output to write it to a file, otherwise it's discarded.

craftr workflow run --all -e petstore-api=prod -e catalog=staging --full-output run.json

Exit codes: 0 all passed, 1 at least one workflow failed (so CI goes red on its own), and 130 if the run was cancelled (Ctrl+C). Before anything runs, the binding is validated: a touched API with no --env errors out up front.

Scripts and trust

A workflow with scripts only runs in a trusted project. In CI there's no one to click approve, so either trust the project once (craftr project trust, persisted in local state) or pass --trust to allow scripts for that single invocation without saving anything.

The other workflow commands

Running isn't all the CLI does. The rest of the namespace manages the workflow files themselves:

craftr workflow list                        # every workflow in the project
craftr workflow validate                    # check refs resolve; refresh script typings
craftr workflow validate pet-lifecycle      # ...or just these
craftr workflow history                     # past runs, newest first (--limit N)
craftr workflow history <run-id>            # read one run in full
craftr workflow rename old new              # scripts directory included
craftr workflow duplicate source new        # scripts directory included
craftr workflow delete pet-lifecycle        # workflow + its scripts directory

validate is the useful one in CI ahead of a run: it catches a block pointing at an API, operation, or instance that no longer exists, without sending a single request.

Contract validation

Set validateContracts: true and every request block's response is validated against its operation's schema (status, body shape). A violation fails that block, a fast way to catch an API drifting from its spec inside an end-to-end test.

Failure handling

onFailure decides what happens after a block fails:

• halt (default): stop immediately; remaining blocks are marked skipped.
• continue: keep going; the run still ends failed, but you see every block's result.

Inside a loop, the same rule applies per iteration: halt stops the sequential loop at the first failed iteration; continue runs them all.

Next

Run requests and workflows in a pipeline with CI/CD, or revisit auth & middlewares for the shared script SDK.
